POE power supply

  • POE adapter small desk-top
  • POE adapter small desk-top
  • POE adapter small desk-top
POE adapter small desk-topPOE adapter small desk-topPOE adapter small desk-top

POE adapter small desk-top

  • Product description: POE adapter small desk top type, 18V1A, 24V1A
  • INQUIRY

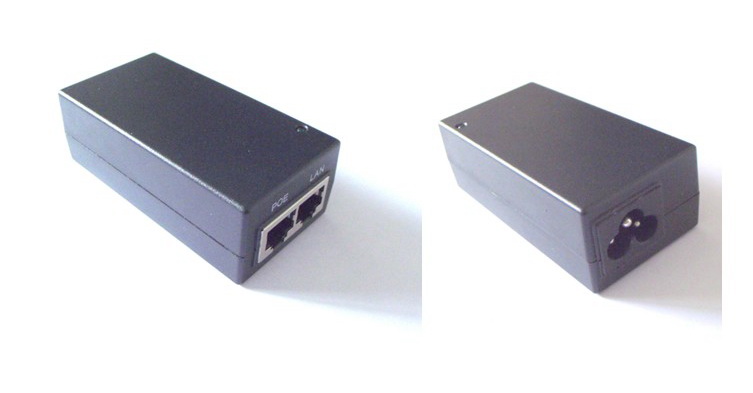

Product Name:POE adapter small desk-top type

Part number :POE-S241000B, POE-S181000B


Introduction:
Input: 100~240V AC
Output: 24V1A, 18V1A or on request.
C8/C6/C14 Plug type
10M/100M Self-adaption
Output Plug:RJ45-2 ( LAN-DATA IN,POE-DATA&POWER OUT)
POE port:
PIN 4 5 +volt&data , PIN 7 8 -volt&data
(MODE B, and MODE A optional)

Features:
1. CE Certification
2. Rohs Compliance
3. Light Weight
4. Input & Output protection
5. Over-Voltage Protective Installation
6. Short-circuit Protective Installation
7. Protection Type: Auto-Recover
8. 2 status LED indicator.
9. MTBF:30,000H(at 25℃)
For more info, please contact : sales@pypelectronic.com
