  • Product description: POE panel 4/6/8/12/16 ports
  • INQUIRY

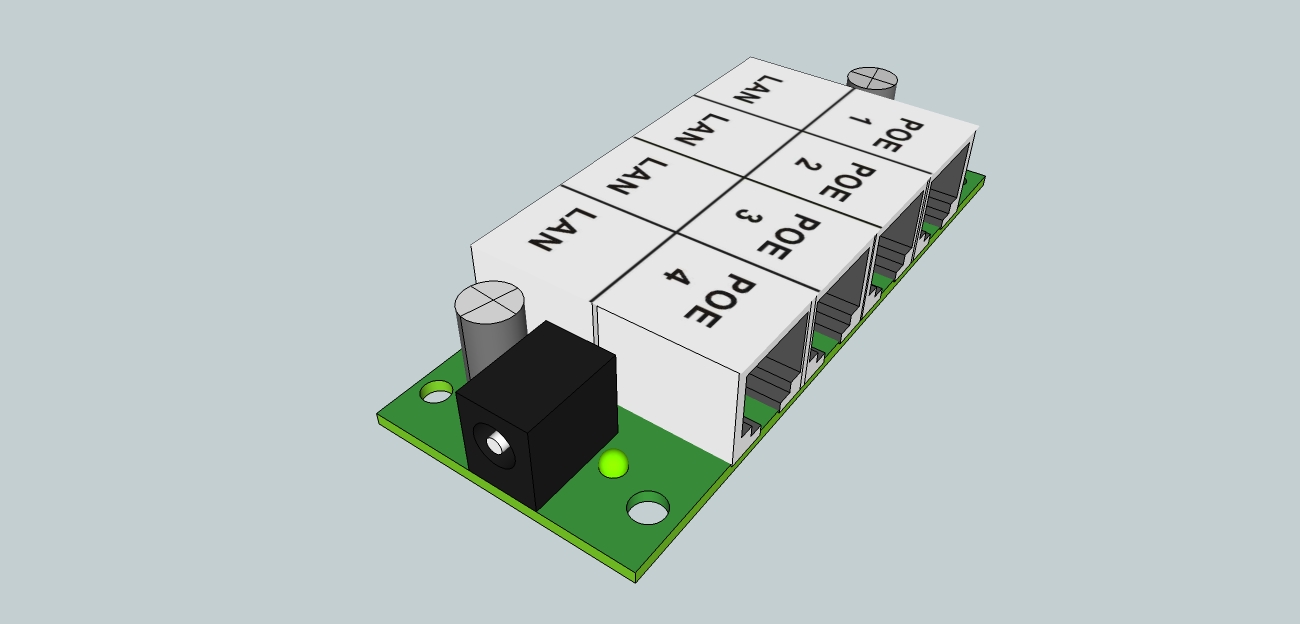

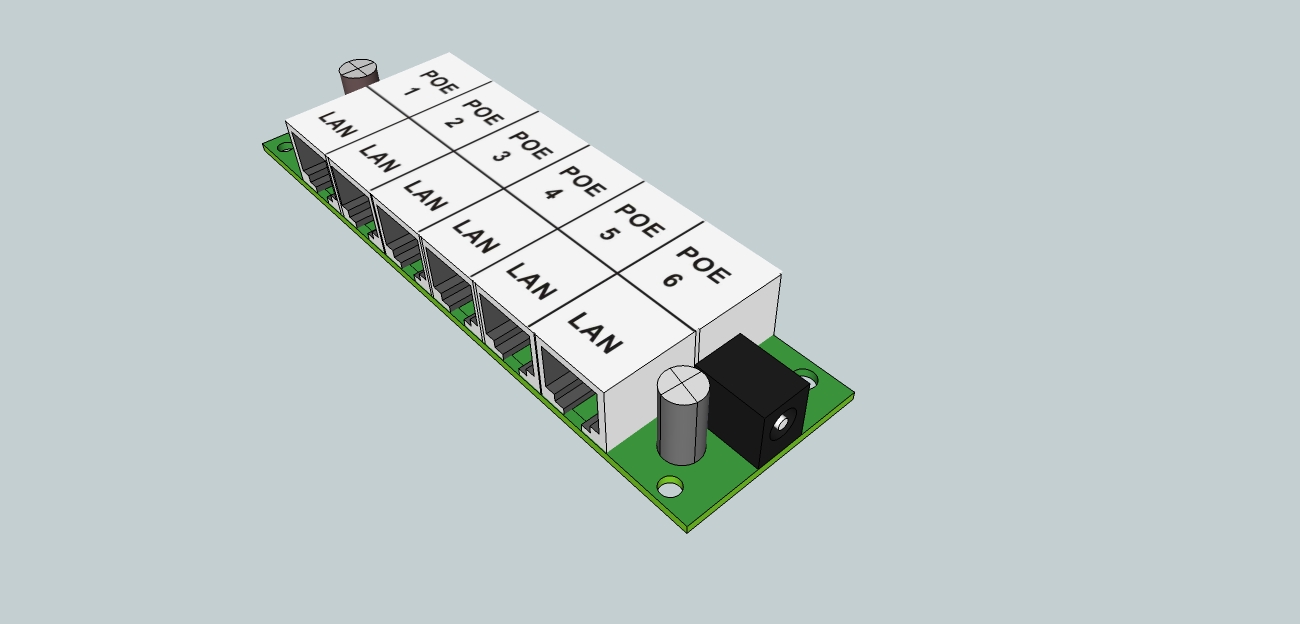

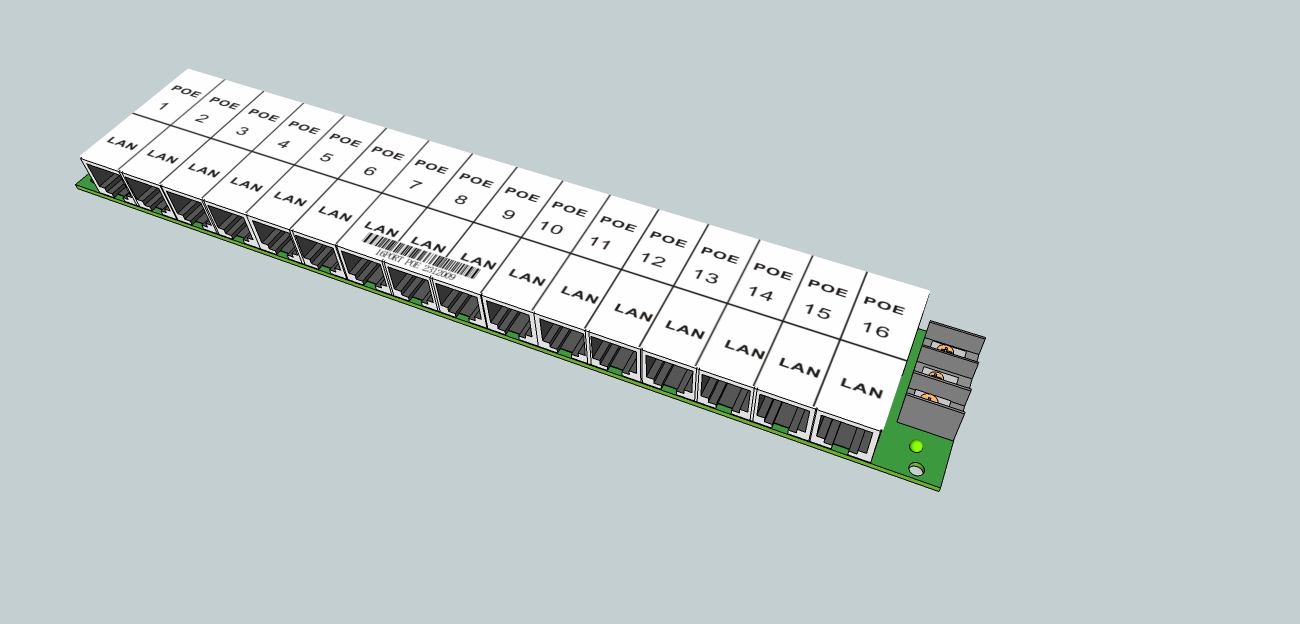

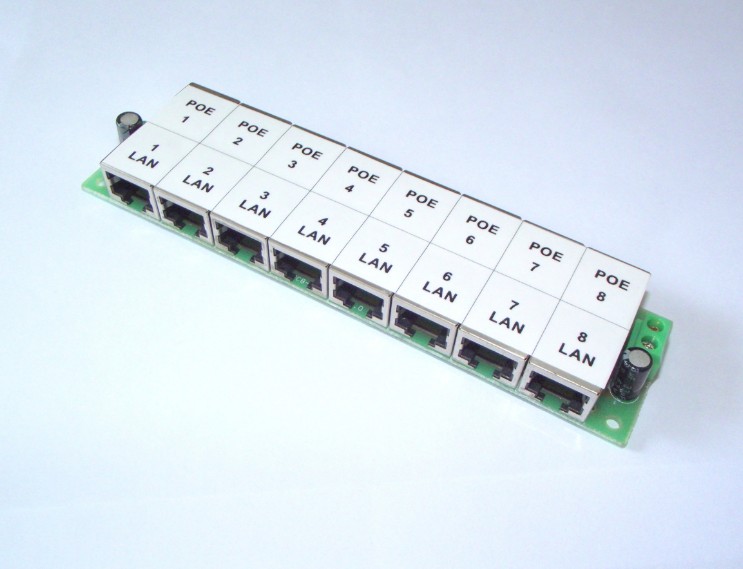

Product name:POE panel with 4/6/8/12/16 ports
Part number :POE-P-4; POE-P-6; POE-P-8; POE-P-12; POE-P-16

Introduction:

This POE Panel which integrates 4/6/8/12/16 passive POE injectors is able to power up to 16 devices which support passive POE such as wireless devices, IP phones, IP cameras,etc.

Installation:
The LAN port RJ-45 connector connects the Ethernet port like switch, PC etc.
The POE Port is to device that support passive POE.
Features:
1) Use for 10/100M Ethernet;
2) 4 ports with RJ45 LAN, 4/6/8/12/16 ports with RJ45 POE;
3) Power input via 2.5* 5.5mm jack;
4) Input voltage : Max. 0-48 V,1.6 A;
5) Output power per port= (Input power)/(Operating port numbers)

6) Dimension: 86*35*16MM

For more info, please contact: sales@pypelectronic.com
